UGEE U1600/U1200

Buy Now

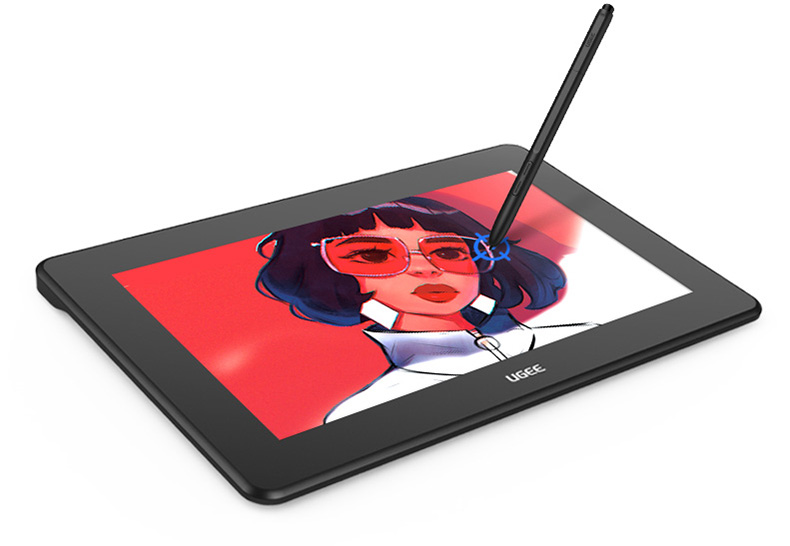

UGEE U-Series Drawing Monitor

Bring Colors Alive on Screen

Your Very First Drawing Monitor

New generation of BOE display
Premium display empowers amazing drawings

Feast your eyes with a wide color gamut

UGEE U-Series adopts IPS display from BOE, the screen supplier of top smartphone and smart device brands. This quality display ensures you a wide color gamut of 127% sRGB, more colors than you need, on the 15.4-inch FHD display for your large and vibrant masterpieces.

16.7 million colors from a 178° viewing angle

The screen with a super-wide viewing angle displays a total of 16.7 million colors, making your images appear vivid and brilliant. Even when viewed from a 178° angle, your images can fully manifest your exquisite painting skills with correct colors.

94%

Adobe RGB

127%

sRGB

90%

NTSC

178°

Viewing angle

16.7 million

Colors

1000:1

High contrast

Laminated screen with minimal parallax effects

Adopting the full lamination technology, U-series monitors reduce parallax effect by the removal of the air gap between the cursor and the tip. Compared with a non-laminated display, the absence of the air gap minimizes color loss and improves image clarity.

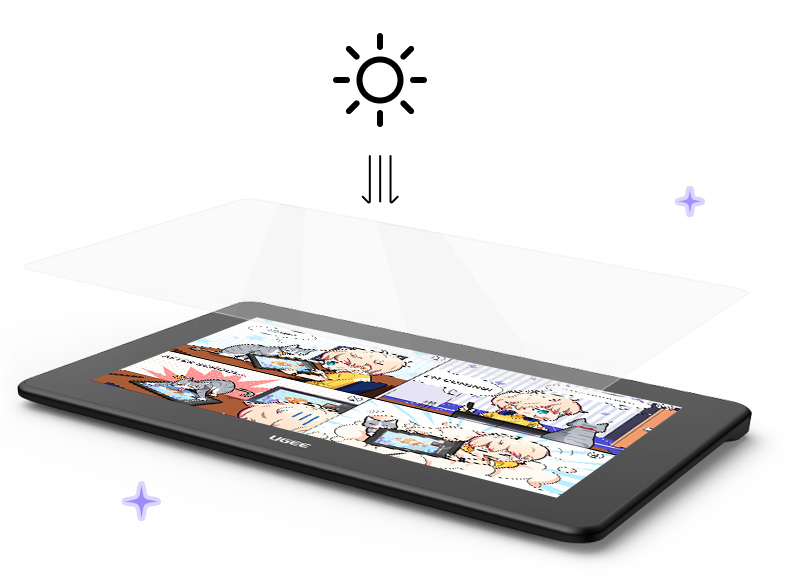

Pre-applied AG film better protects your eyes

AG protective film is already applied on the drawing monitor. It preserves vibrant colors and reduces glare, keeping your eyes comfortable during your creation. The film gives you a nice rough feel, close to traditional drawing experience. You can hear pleasant swishing sounds as you draw on the display with our felt nib.

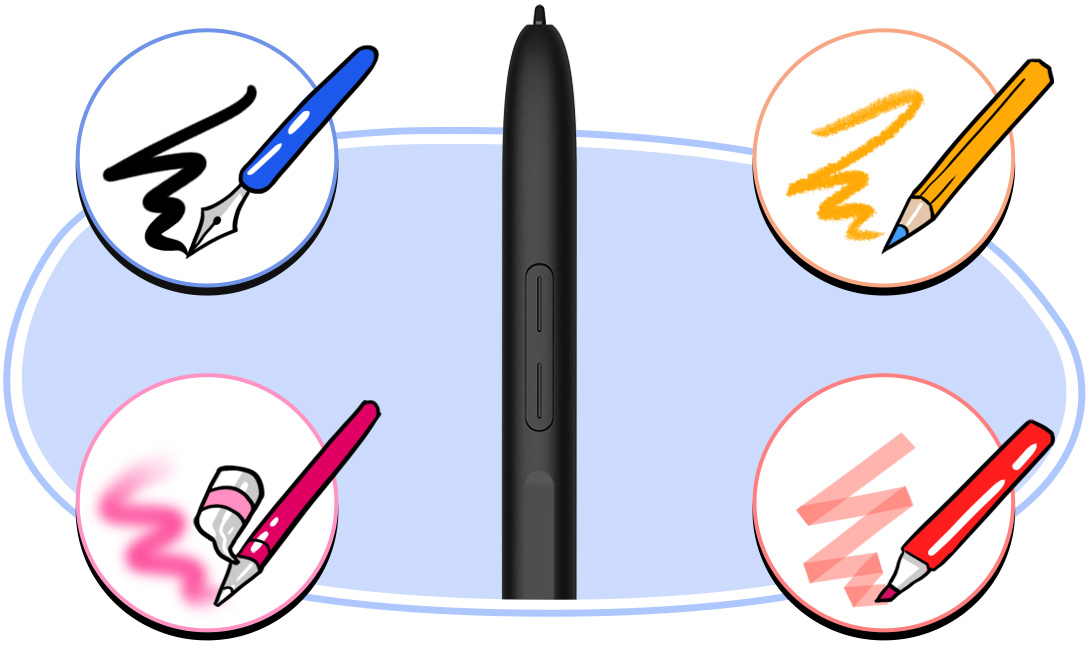

New battery-free stylus
with pressure-sensitive eraser
Close to pencil drawing experience

A special stylus with unique structure

The included battery-free stylus does not require charging. It is slim as a regular gel pen to easily draw with. It features a unique design that shortens the nib-rebounding route, ensuring smooth and accurate drawing. The stylus has 2 shortcut keys. You can set them as any features you like to improve your efficiency.

Right-click

Brush/Eraser

Pressure-sensitive Eraser

Right-click

Brush/Eraser

Pressure-sensitive
Eraser

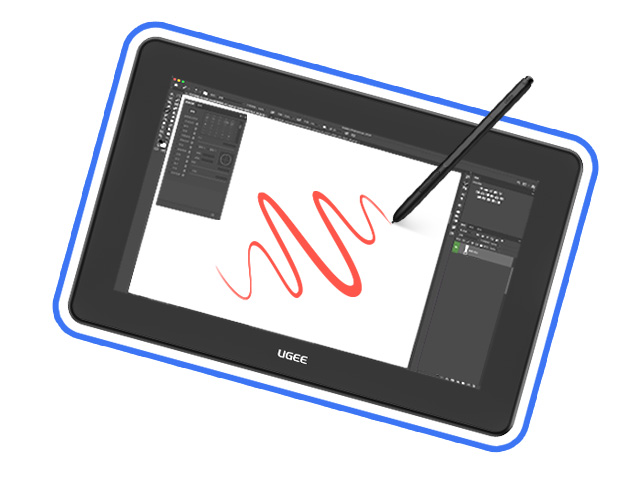

Recreate your imagination with precise strokes

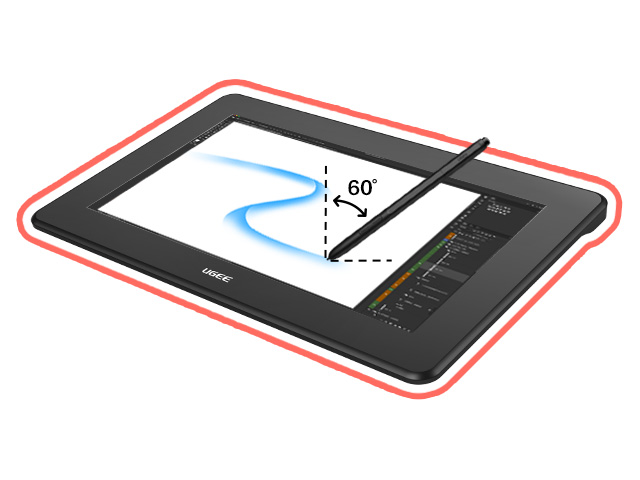

The stylus has 8192 levels of pressure sensitivity and a 60° tilt. With the nice rough feel given by the nib, you can adjust the force applied on the stylus to draw as naturally and smoothly as with a real pen. In addition, corner accuracy is improved to be ±1.5 mm, twice as sensitive as its peers. Strokes can be well controlled even near the screen edge.

8192 Levels
Pressure sensitivity

±60°
Tilt

±1.5 mm
Corner accuracy

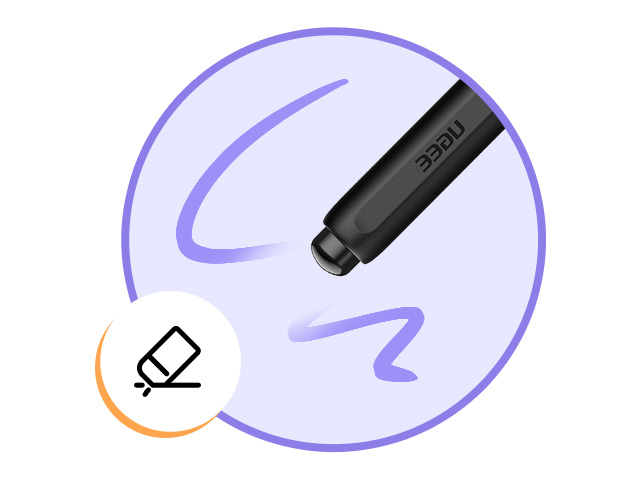

Unique pressure sensitive eraser

The eraser at the end of the stylus is embedded with patented pressure sensitivity technology. It can produce different effects like a real eraser, depending on how much force you exert. *

To reduce color saturation or line darkness so as to achieve grunge texture, scratching effect, etc.

To easily remove the wrong strokes without leaving any trace.

Erase lightly between different color patches to produce blending effect.

Light erasing

To reduce color saturation or line darkness so as to achieve grunge texture, scratching effect, etc.

Heavy erasing

To easily remove the wrong strokes without leaving any trace.

Blending

Erase lightly between different color patches to produce blending effect.

* The creative software should support pressure-sensitive eraser .

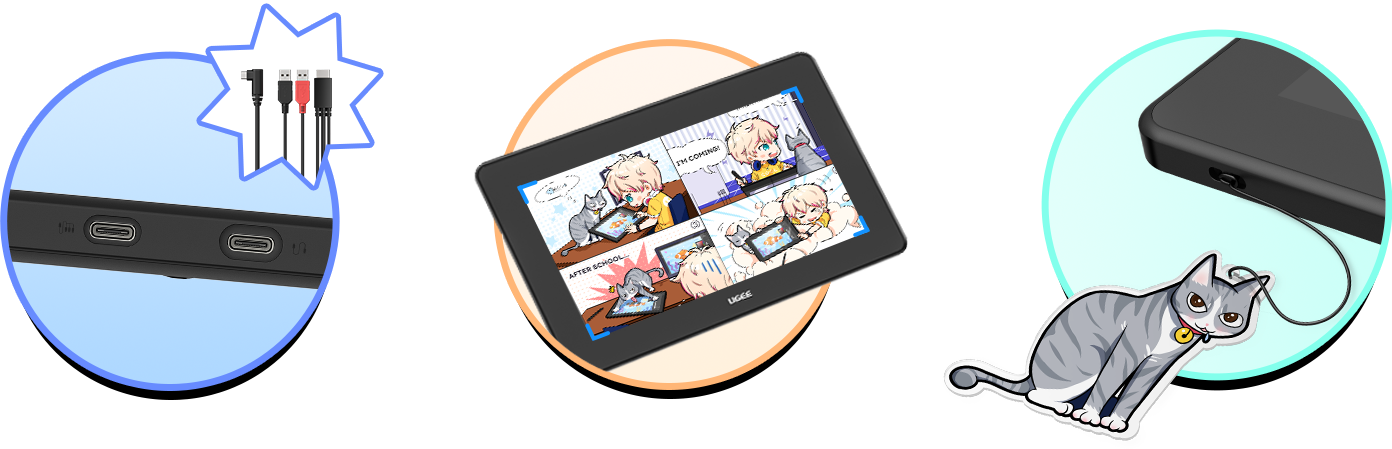

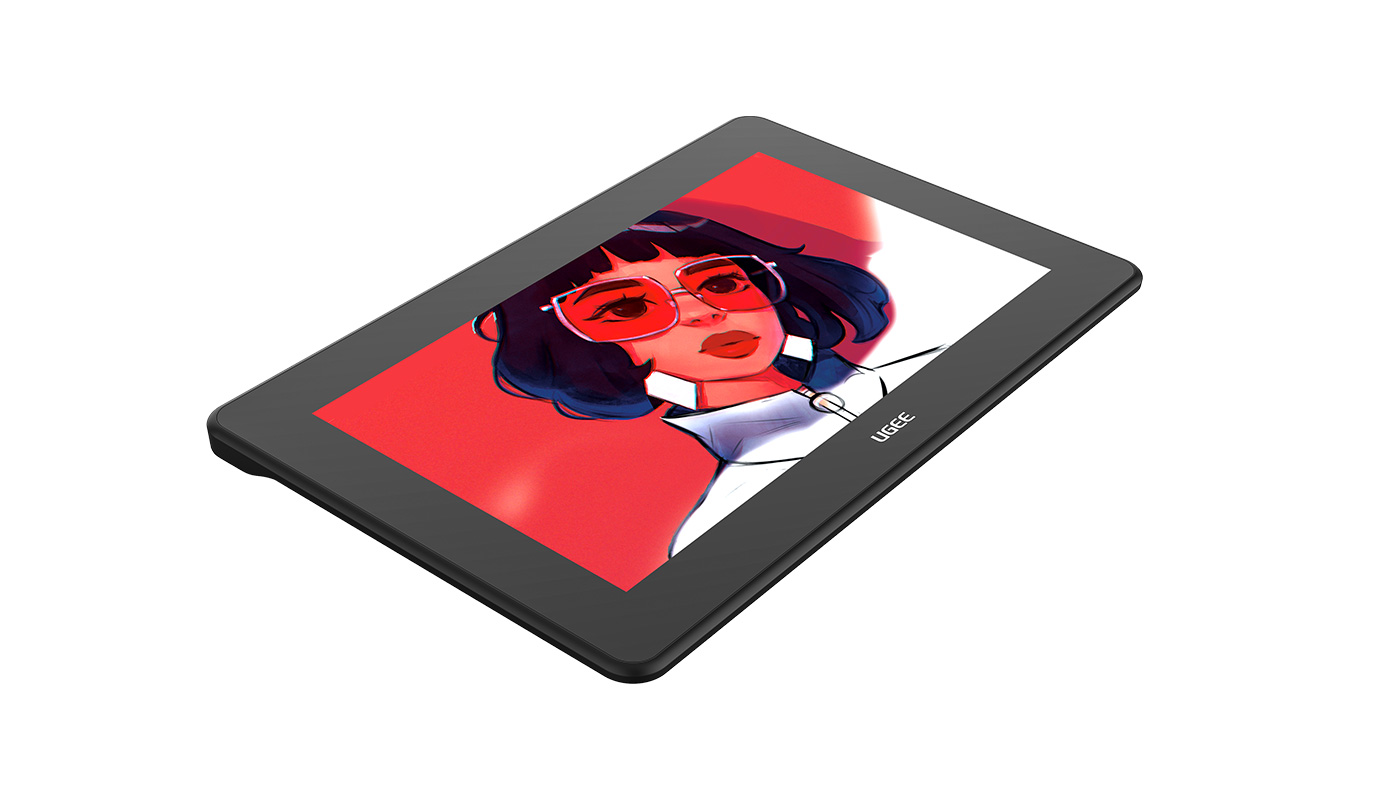

Simple design
Fantastic experience

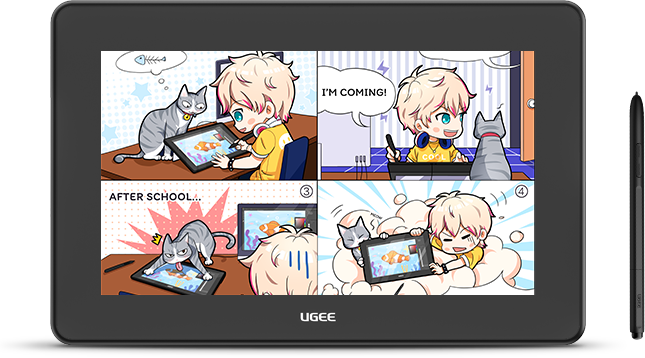

The one-piece glass cover on the front sets the tone for minimalist aesthetics.

Curved corners

The curved corners and chamfered edges are rounded for a sleek and comfortable feel.

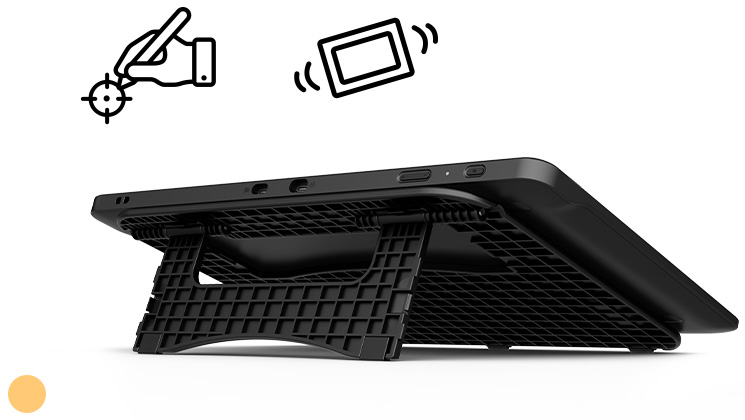

Ergonomic slope

The exterior is ergonomically designed with a slight slope to make your drawing experience easier and more comfortable.

Streamlined waist

Streamlined waist makes it stylish and easy to carry and hold.

Lanyard hole

This hole allows you to decorate the monitor or pair it with a cord lock to prevent accidental drops or theft in public areas.

Curved corners

The curved corners and chamfered edges are rounded for a sleek and comfortable feel.

Ergonomic slope

The exterior is ergonomically designed with a slight slope to make your drawing experience easier and more comfortable.

Streamlined waist

Streamlined waist makes it stylish and easy to carry and hold.

Lanyard hole

This hole allows you to decorate the monitor or pair it with a cord lock to prevent accidental drops or theft in public areas.

More than a drawing monitor

While you take online classes on the computer display, this monitor is your study notebook for doodles and notes.

You can also watch your favorite shows on it while chatting with your friends on computer.

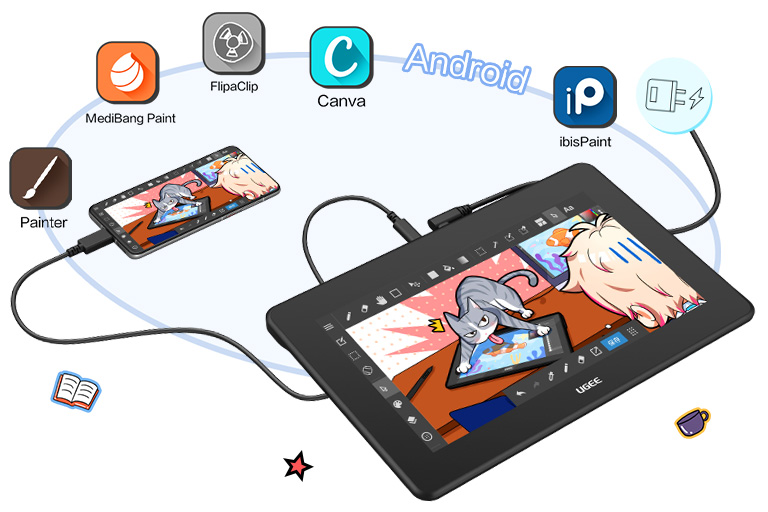

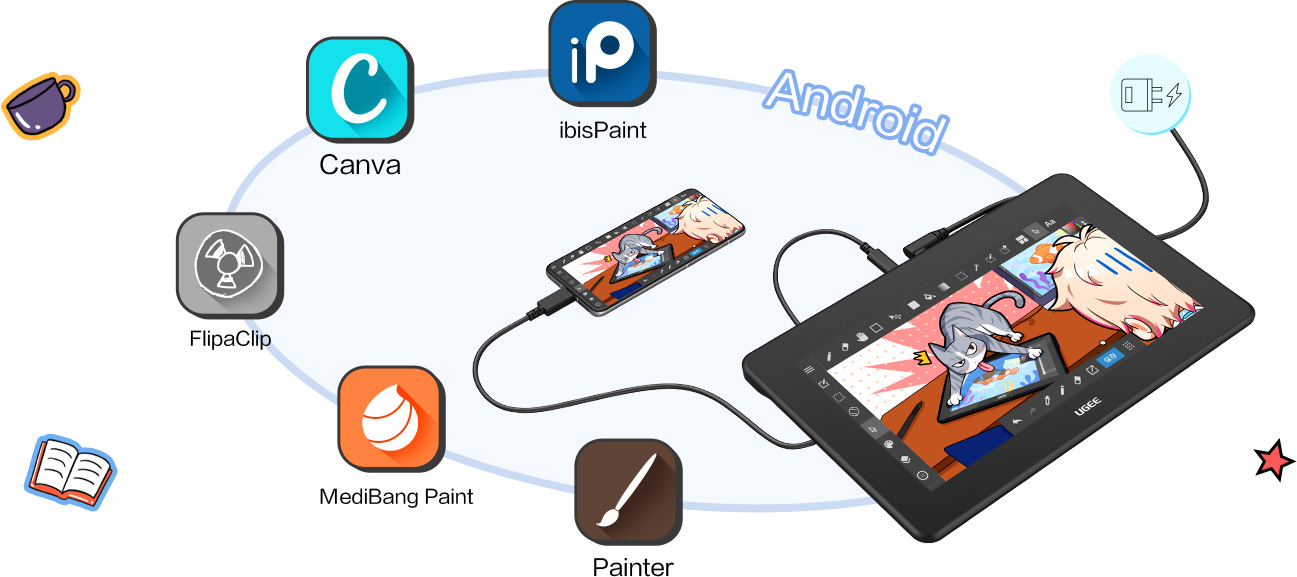

Runs on your Android phone.* This drawing monitor then gives you a big canvas to draw on and a large screen to watch movies.

Connected to a switch, it's a game monitor. Enjoy games on this large display with your friends!*

* List of compatible Android (USB3.1 DP1.2) devices

* Another Power is required while connecting to an Android device or Switch.

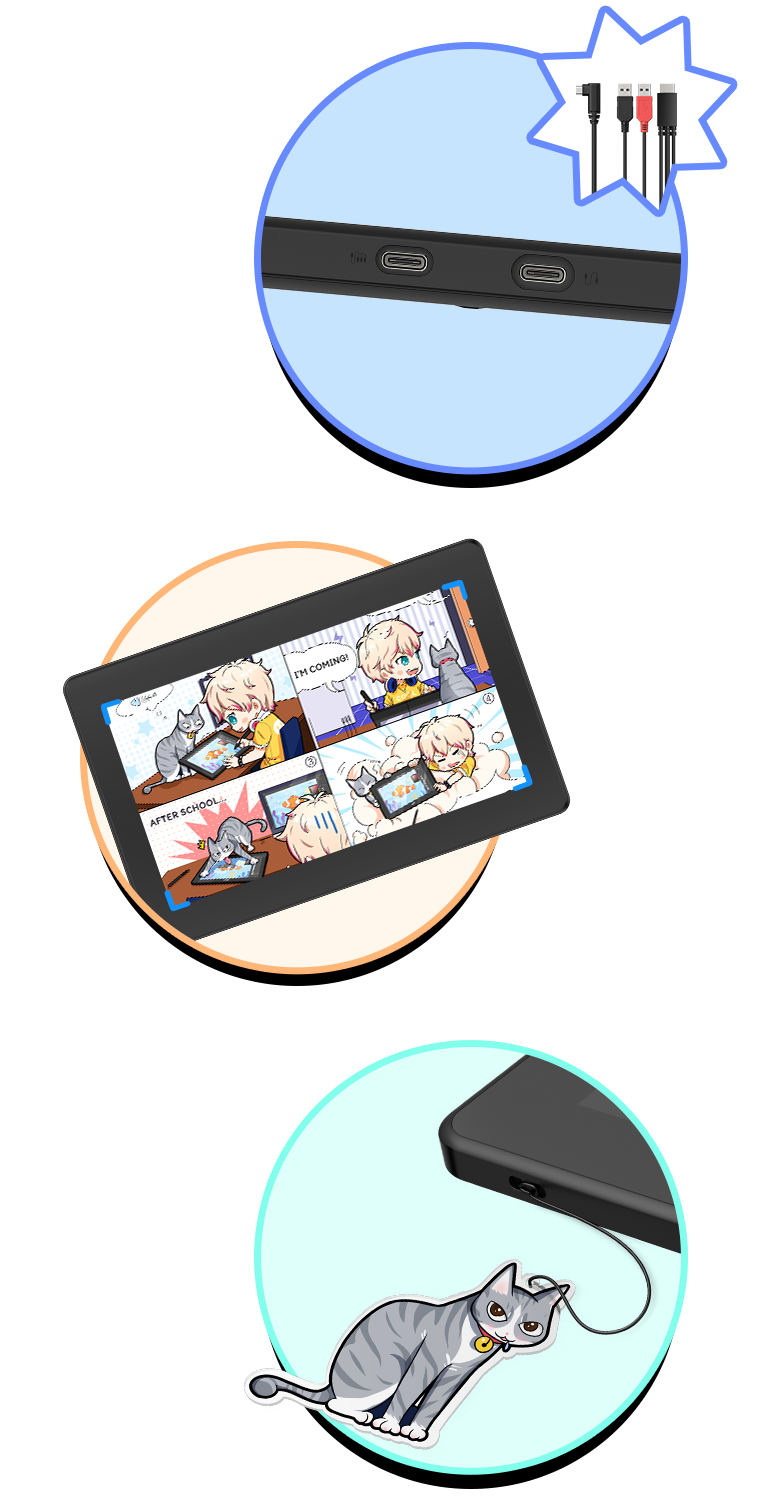

Detailed design, ease of use

Easy to setup with just one cable
Start drawing right away

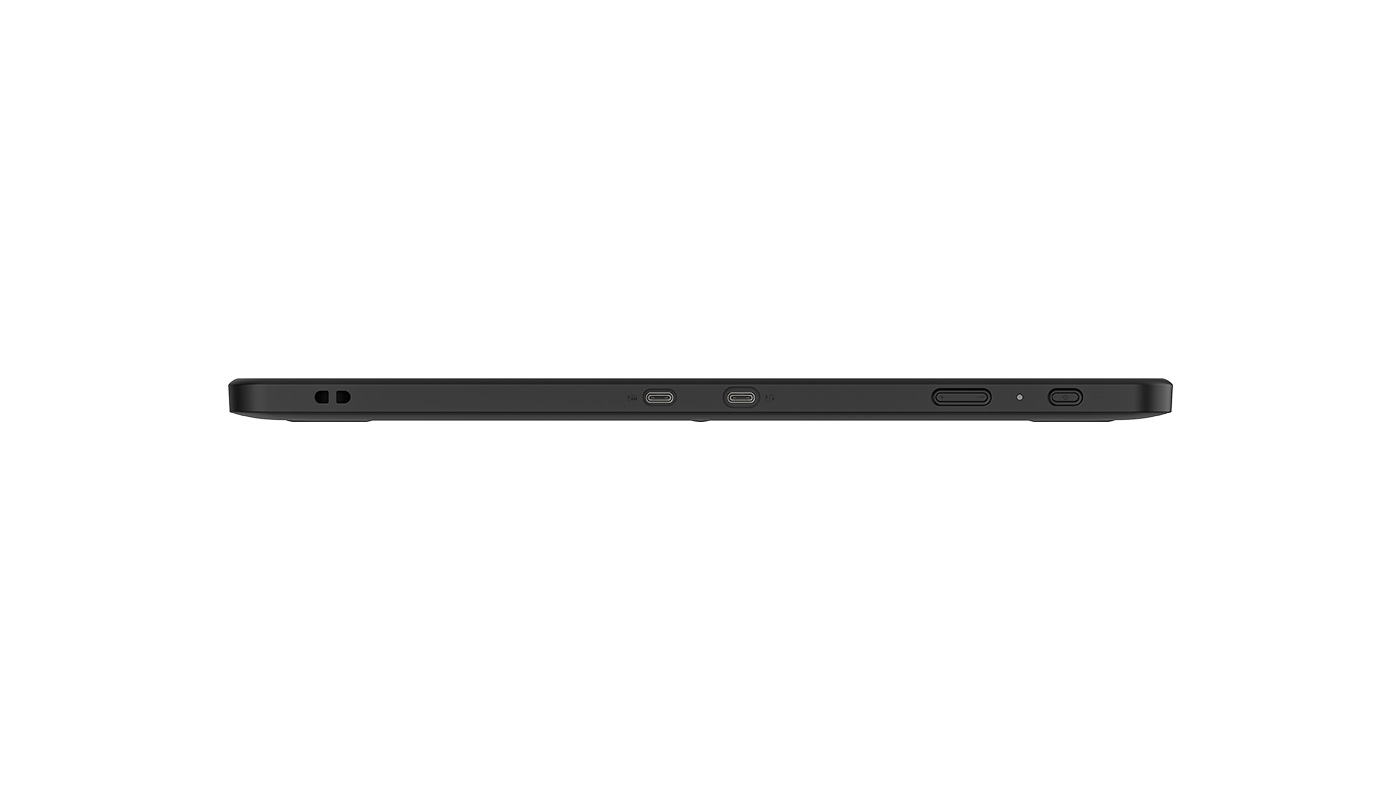

With a full-featured built-in USB-C port, you can connect this monitor to your phone or PC with just one cable.

* Full featured USB-C to USB-C cable is sold separately and the official accessory is suggested.

Light-weight driver, install and use instantly

The driver is easy to install and operate in just a few steps. Its default presets are carefully arranged according to common habits, allowing beginners to get started right away.

Switches to drawing tablet mode
to save power

Press and hold the monitor's power key for 3 seconds to use it like a drawing tablet to extend its service time during a power emergency.

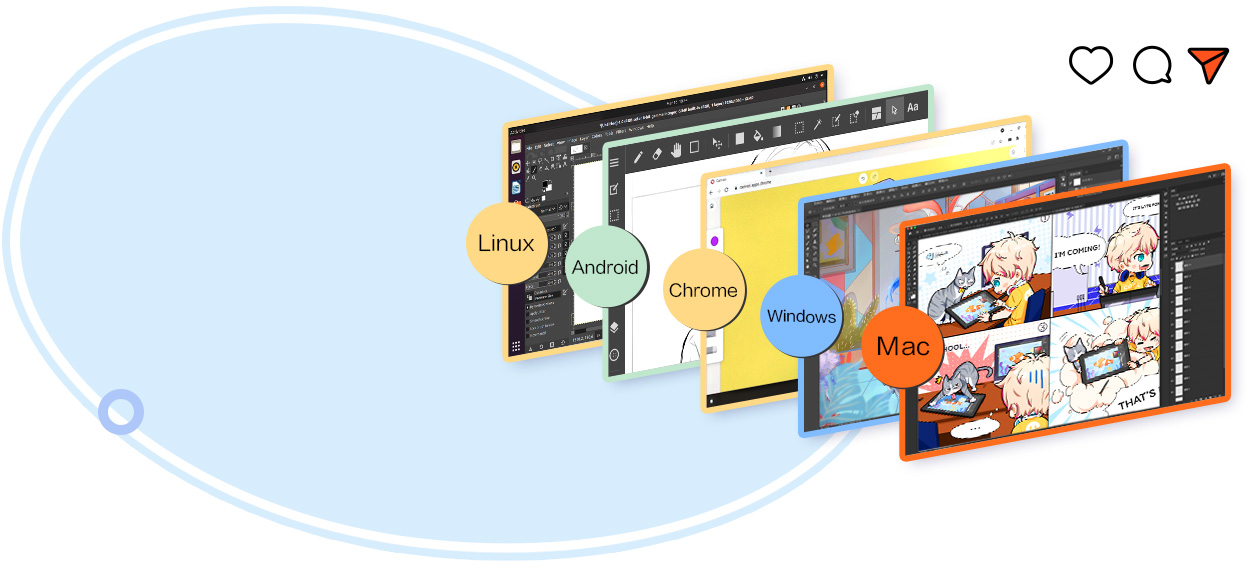

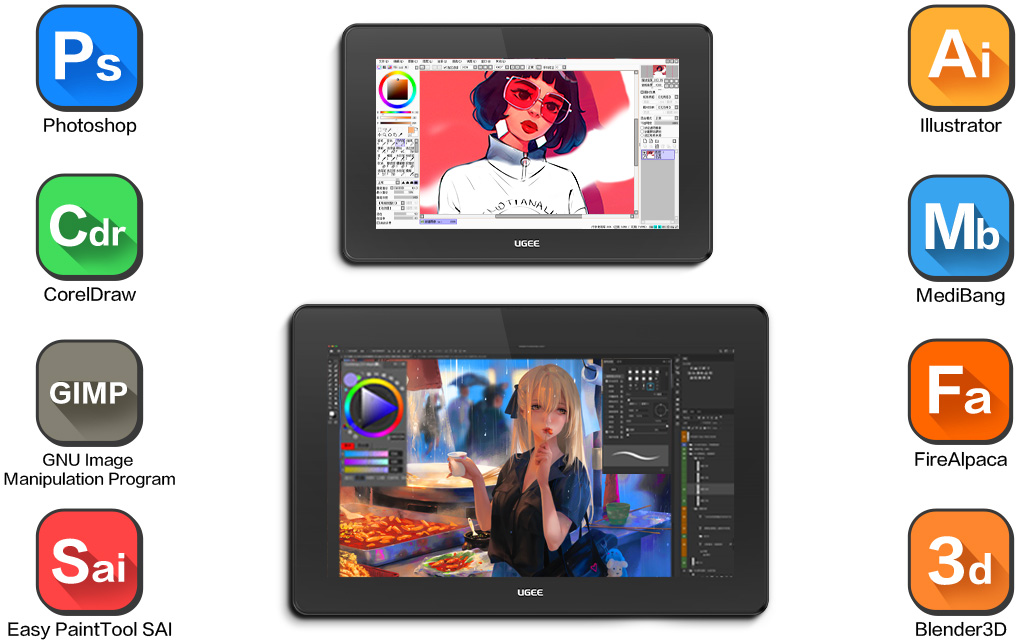

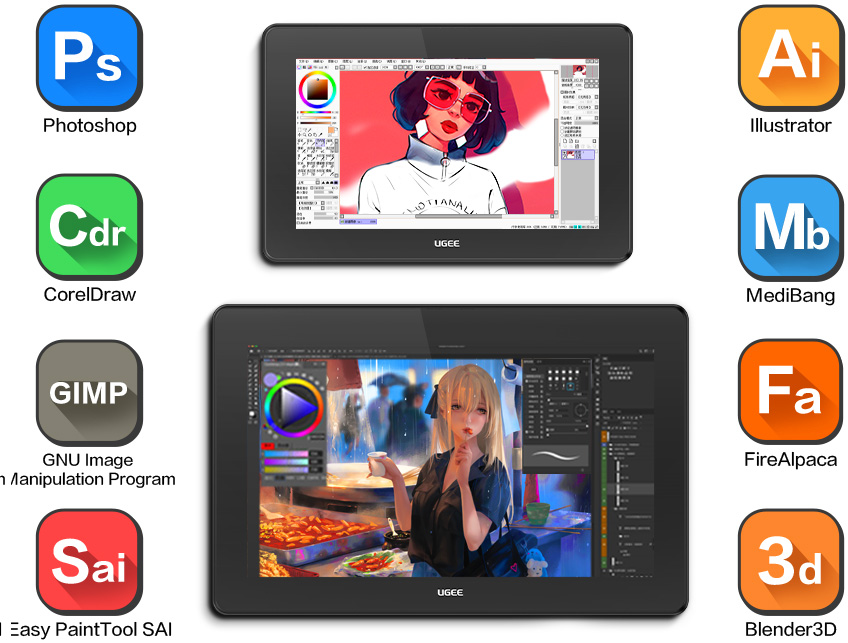

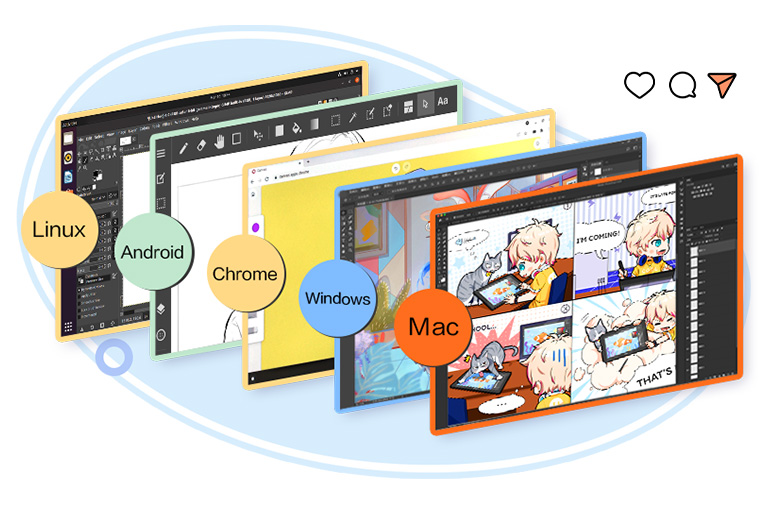

Runs well with common devices and creative software

U-Series Drawing Monitor is compatible with Windows, Mac OS, Linux, and Chrome OS. It also works well with Android devices (USB3.1, DP1.2) and popular drawing software. You can have access to a host anywhere with ease to unleash your artistic creativity.

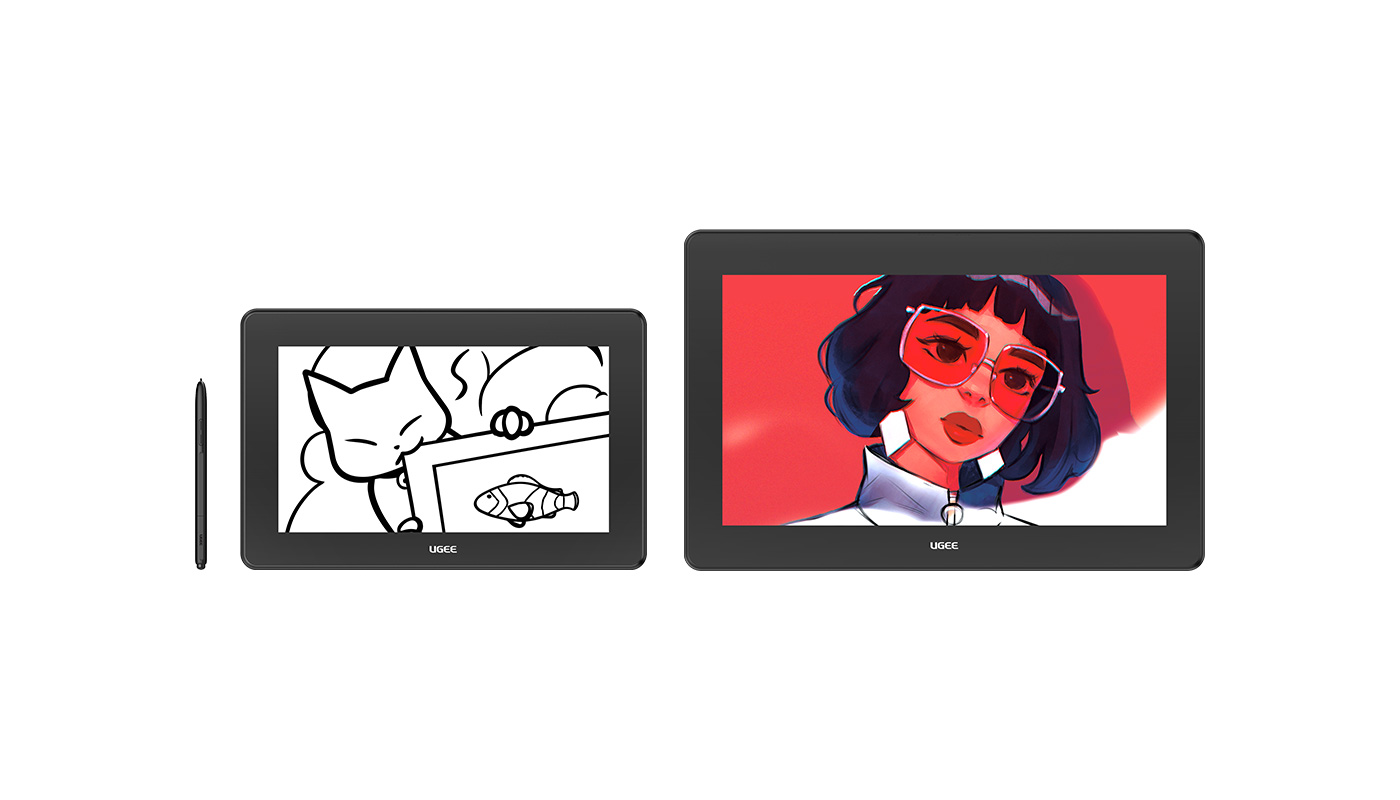

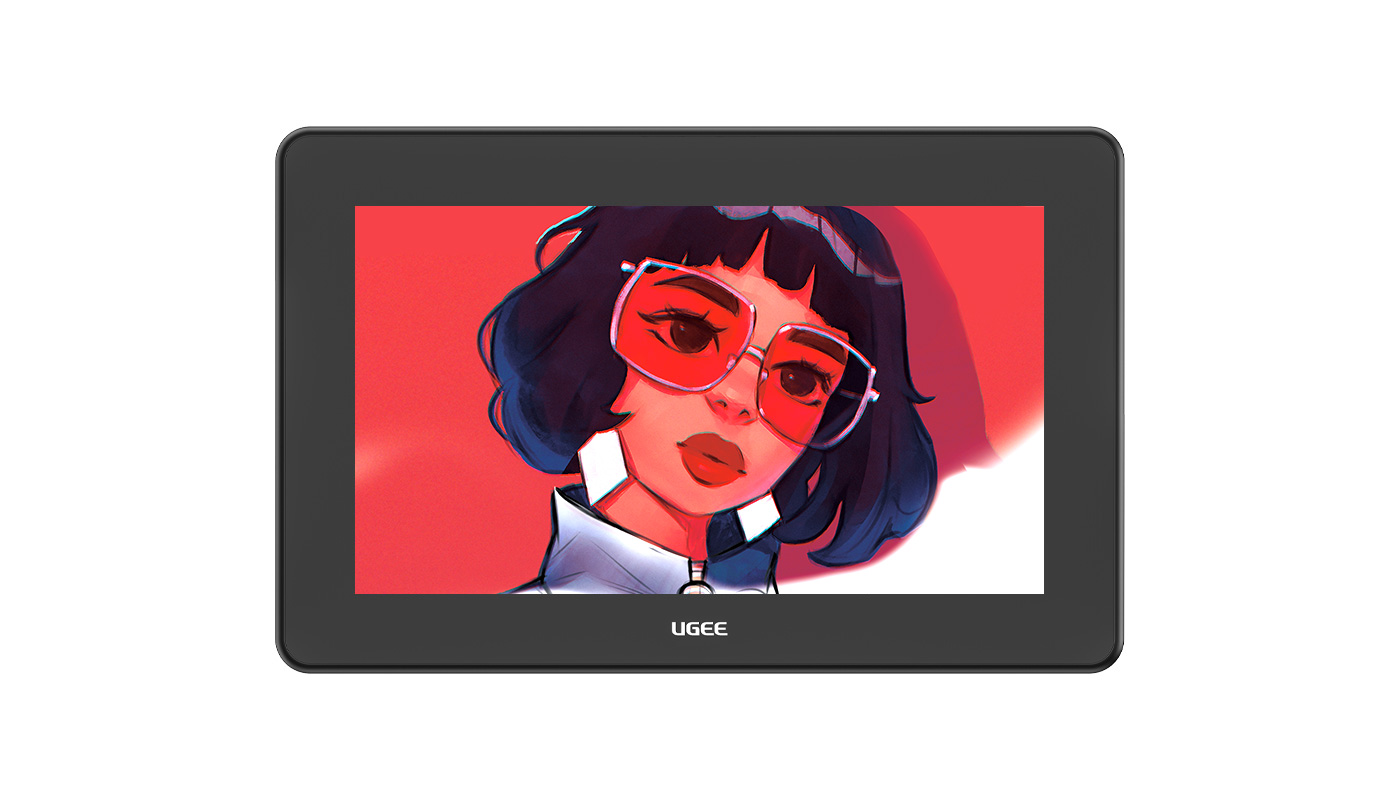

Specifications

U1600

U1200

Product Model

U1600

U1200

Dimensions

402 x 263 x 14.74 mm

323.92 x 208.54 x 14.46 mm

402 x 263 x 14.74 mm

323.92 x 208.54 x 14.46 mm

Active Area

341.0 x 191.8 mm

263.2 x 148.1 mm

341.0 x 191.8 mm

263.2 x 148.1 mm

Display Resolution

1920 x 1080

Color Gamut

90% NTSC, 127% sRGB, 94% Adobe RGB

Full Lamination

Yes

Contrast (typical)

1000:1

Brightness (typical)

220 cd/m2

Viewing Angle

178°

Stylus

PH12 battery free stylus (with eraser)

Pressure Sensitivity

8192

Tilt

60°

Resolution

5080 LPI

Reading Height

10 mm

Accuracy

±0.5 mm (center), ±1.5 mm (corner)

Ports Included

1 x full-featured USB-C, 1 x 3-in-1 USB-C

Power Input

DC 5V-2A

Compatibility

Windows 7/8/10/11
Mac OS X 10.10 (or later)
Chrome OS 88 (or later)
Android (USB3.1 DP1.2), list of compatible Android devices
Linux

Package Includes

1 x Drawing Monitor

1 x Battery-free Stylus

10 x Replacement Nibs

1 x Pen-Clipper

1 x Extension Cord

1 x 3-in-1 Cable
(L-shaped)

1 x Quick Guide

1 x Guarantee Card

1 x Power Adaptor
(U1600 drawing monitor only)

1 x Cleaning Cloth

1 x Glove

Linux OS	Version	Package Format	Supported Software
Arch	Arch Linux2019.12.01(64-bit)	.deb, .sh	GIMP, Krita
Centos	Centos7.0(64-bit)	.rpm, .sh	GIMP
Centos	Centos8(64-bit)	.rpm, .sh	GIMP, Krita
Debian	debian-9.5.0-amd64-netinst(64-bit)	.deb, .sh	GIMP, Krita
elementary OS	elementary OS 5.0(64-bit)	.deb, .sh	GIMP, Krita
ezgo Linux	ezgo14(64-bit)	.deb, .sh	GIMP, Krita
Fedora	Fedora32(64-bit)	.rpm, .sh	GIMP, Krita
Mageia	Mageia-7.1(64-bit)	.rpm, .sh	GIMP, Krita
Manjaro	manjaro-xfce-20.1.2-201019(64-bit)	.deb, .sh	GIMP
Mint	linuxmint-18.2-cinnamon-64bit	.deb, .sh	GIMP, Krita
OpenSUSE	openSUSE-Tumbleweed(64-bit)	.rpm, .sh	GIMP, Krita
Pop!_OS	pop-os_19.10(64-bit)	.deb, .sh	GIMP, Krita
Red Hat	Red Hat7(64-bit)	.rpm, .sh	GIMP
Ubuntu	Ubuntu14.04(64-bit)	.deb, .sh	GIMP, Krita
	Ubuntu16.04(64-bit)	.deb, .sh	GIMP, Krita
	Ubuntu17.04(64-bit)	.deb, .sh	GIMP, Krita
	Ubuntu18.04(64-bit)	.deb, .sh	GIMP, Krita
	Ubuntu19.04(64-bit)	.deb, .sh	GIMP, Krita
	Ubuntu20.04(64-bit)	.deb, .sh	GIMP, Krita

Function	Krita 4.3.0	Gimp 2.10.20	Inkscape 0.92
Pen Pressure Sensitivity
Tilt
Mouse Function
Eraser Button (Stylus：PH01, P06)
Switch between Pen and Eraser Modes
*If you have any further queries, please do not hesitate to contact us at service@ugee.com.

Linux OS

Arch

Version

Arch Linux2019.12.01(64-bit)

Package Format

.deb, .sh

Supported Software

GIMP, Krita

Centos

Version

Centos7.0(64-bit)
Centos8(64-bit)

Package Format

.rpm, .sh
.rpm, .sh

Supported Software

GIMP
GIMP, Krita

Debian

Version

debian-9.5.0-amd64-netinst(64-bit)

Package Format

.deb, .sh

Supported Software

GIMP, Krita

elementary OS

Version

elementary OS 5.0(64-bit)

Package Format

.deb, .sh

Supported Software

GIMP, Krita

ezgo Linux

Version

ezgo14(64-bit)

Package Format

.deb, .sh

Supported Software

GIMP, Krita

Fedora

Version

Fedora32(64-bit)

Package Format

.rpm, .sh

Supported Software

GIMP, Krita

Mageia

Version

Mageia-7.1(64-bit)

Package Format

.rpm, .sh

Supported Software

GIMP, Krita

Manjaro

Version

manjaro-xfce-20.1.2-201019(64-bit)

Package Format

.deb, .sh

Supported Software

GIMP

Mint

Version

linuxmint-18.2-cinnamon-64bit

Package Format

.deb, .sh

Supported Software

GIMP, Krita

OpenSUSE

Version

openSUSE-Tumbleweed(64-bit)

Package Format

.rpm, .sh

Supported Software

GIMP, Krita

Pop!_OS

Version

pop-os_19.10(64-bit)

Package Format

.deb, .sh

Supported Software

GIMP, Krita

Red Hat

Version

Red Hat7(64-bit)

Package Format

.rpm, .sh

Supported Software

GIMP

Ubuntu

Version

Ubuntu14.04(64-bit)
Ubuntu16.04(64-bit)
Ubuntu17.04(64-bit)
Ubuntu18.04(64-bit)
Ubuntu19.04(64-bit)
Ubuntu20.04(64-bit)

Package Format

.deb, .sh
.deb, .sh
.deb, .sh
.deb, .sh
.deb, .sh
.deb, .sh

Supported Software

GIMP, Krita
GIMP, Krita
GIMP, Krita
GIMP, Krita
GIMP, Krita
GIMP, Krita

Function

Pen Pressure Sensitivity

Krita 4.3.0

Gimp 2.10.20

Inkscape 0.92

Tilt

Krita 4.3.0

Gimp 2.10.20

Inkscape 0.92

Mouse Function

Krita 4.3.0

Gimp 2.10.20

Inkscape 0.92

Eraser Button(Stylus：PH01, P06)

Krita 4.3.0

Gimp 2.10.20

Inkscape 0.92

Switch between Penand Eraser Modes

Krita 4.3.0

Gimp 2.10.20

Inkscape 0.92

*If you have any further queries, please do not hesitate to contact us at service@ugee.com.

Compatibility list of other systems
Mode Switch

System	Turn off Touch function	Turn on Pen Priority mode	Turn on both Pen and Touch functions
Windows	Support	Support	Support
Mac	Support	Support	Not supported
Android (List of compatible Android devices)	Support	Support	Not supported
Touch Gesture
	Single-finger	Two-finger	Multi-finger
Windows	Support	Support	Not supported
Mac	Support	Not supported	Support
Android	Support	Support	Not supported
Compatibility list of other systems
Mode Switch
Turn off Touch function		Windows: support Mac: support Android (List of compatible Android devices): support
Turn on Pen Priority mode		Windows: support Mac: support Android (List of compatible Android devices): support
Turn on both Pen and Touch functions		Windows: support Mac: not supported Android (List of compatible Android devices): not supported
Touch Gesture
Single-finger		Windows: support Mac: support Android: support
Two-finger		Windows: support Mac: not supported Android: support
Multi-finger		Windows: not supported Mac: support Android: not supported

List of compatible Android devices
HUAWEI Mate 10	Samsung Galaxy Note8
HUAWEI Mate 10 Pro	Samsung Galaxy Note9
HUAWEI Mate 20	Samsung Galaxy Note10
HUAWEI Mate 20 Pro	Samsung Galaxy Note10+ 5G
HUAWEI Mate 20 X	Samsung Galaxy S8
HUAWEI Mate 30 Pro	Samsung Galaxy S8+
HUAWEI Mate 40	Samsung Galaxy S9
HUAWEI Mate 40 Pro	Samsung Galaxy S9+
HUAWEI Mate 30E Pro 5G	Samsung Galaxy S10
HUAWEI P30	Samsung Galaxy S10+
HUAWEI P30 Pro	Samsung Galaxy S10e
HUAWEI P40	Samsung Galaxy S20 Ultra 5G
HUAWEI P40 Pro	Samsung Galaxy S20 FE 5G
HUAWEI P40 Pro+	Samsung Galaxy S20
Honor V20	Samsung Galaxy S20+
Honor 30 Pro+	Samsung Galaxy A90 5G
