UE12 PLUS

Drawing Monitor

Every Hue Covered, Every Color Revealed

Why Should You Choose UE12 PLUS?

Bring every stroke to life with vibrant colors.

147% sRGB Wide Color Gamut

Easily switch to meet different visual preferences.

Multiple Color Spaces

Enhanced image vibrancy and liveliness.

99% Ultra-Wide Color Coverage

Pencil-like design, true-to-life
drawing experience.

16K Levels of Pressure Sensitivity

Precise stroke adjustment during drawing.

Scroll Wheel

Flexible and convenient connection.

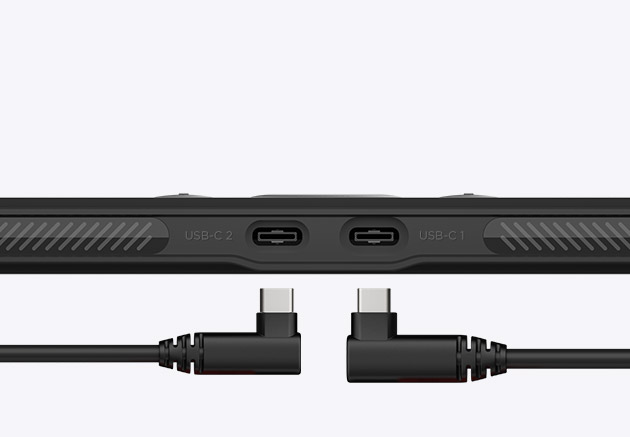

Dual Type-C Ports

Clearer display and more precise stroke.

Full-Laminated Screen

Grouped design with tactile buttons for easy blind pressing.

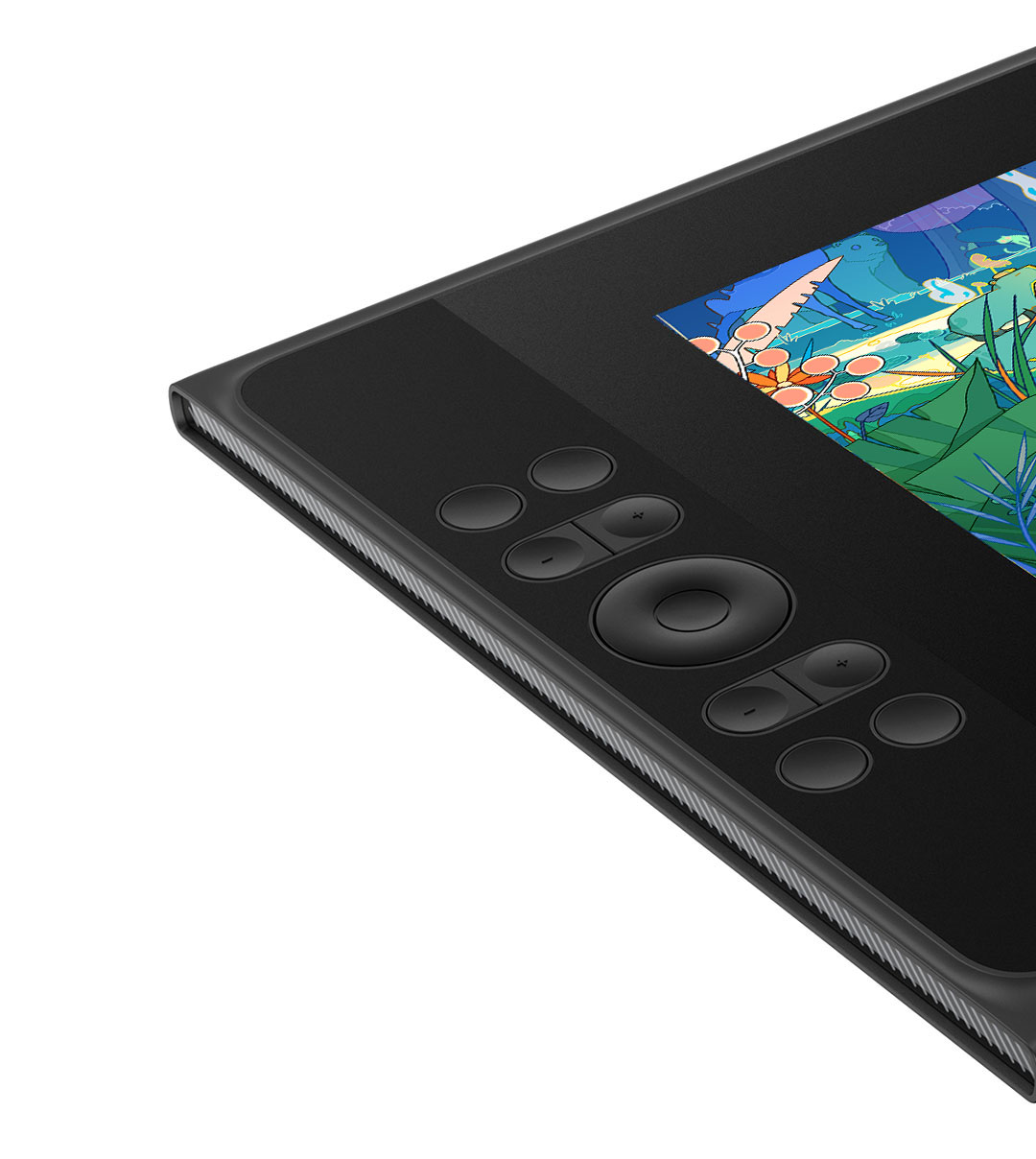

8 User-friendly Shortcut Keys

Cutting-Edge Aesthetics

Redefining Industrial Design

A New Era of Industrial Chic Design

Our revolutionary 'floating screen' design is a visual masterpiece that sets a new standard in industrial design.
The combination of sharp, straight lines on the base and smooth,
rounded edges on the screen creates an enchanting blend of innovation and elegance.
The ultimate choice for aesthetics enthusiasts!

Orange
Black

Brush/Eraser

Brush Size Decrease/Increase

Scroll Wheel: Zoom Out&In

Move Layer Down/Up

Undo/Redo

Unleash Your Artistic Potential With

True-to-Life Colors

General Color Gamut

UE12 PLUS Superior
Color Gamut

*Press the Brightness+ and Brightness- buttons simultaneously to switch color spaces.

Color Coverage Rate:

99% sRGB

95% Adobe RGB

99% DCI-P3

*Color coverage ≠ color gamut (the maximum color coverage can only reach 100% sRGB). Professional design display devices emphasize high color coverage, which can greatly enhance the accuracy of screen color reproduction.

Full-lamintaed Screen
Enhanced Clarity for Vivid Drawing Detail

Equipped with a 11.9-inch full-laminated screen, the UE12 PLUS achieves ultimate precision in every stroke, as the pen tip and cursor align flawlessly without any visual discrepancies. With the FHD (1920*1080) screen, it can also effectively enhance clarity for vivid detail of your drawing.

Anti-glare

Papery Surface

FHD Screen

Freely Switch to Drawing Tablet
Explore Boundless
Creative Potential

In just a heartbeat, the UE12 PLUS can be easily switched to a 'drawing tablet' after long pressing the power key for 3s, making it perfectly compatible with some drawing softwares which would bring better experience with drawing tablet and keyboard. Choose your preferred creative mode and indulge in a pinnacle drawing experience.

*Long press the power button for more than 3s to switch to "Drawing Tablet" mode. Press the power button once and bring it back to "Drawing Monitor" mode.

Unrivaled Compatibility
Empowering Your Creativity

Compatible with popular operating systems like Windows, Mac OS, Android, Chrome, etc.
Effortlessly supports a wide range of leading drawing and design software.
Meet all your creative needs, allowing you to fully immerse in the joy of creating.

Explore More Possibilities

Digital Drawing on Your Computer

Sketching

Animation Design

Photo Editing

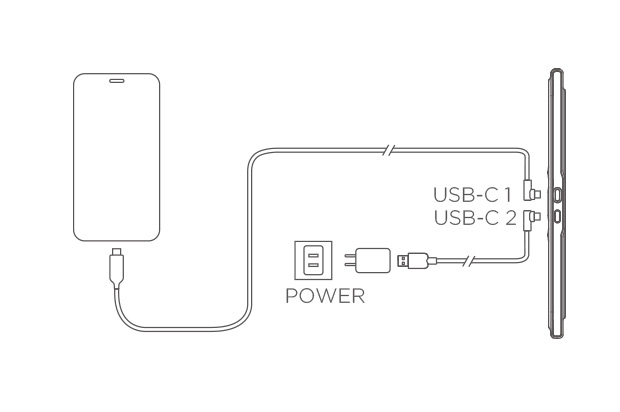

Drawing on Your Smartphone

Note-taking
for Online Courses

Used as
an Expansion Screen

Used for Watching Movies&Playing Games

Specifications
UE12 PLUS
Active Area
11.9 inch (263.2*148.1mm)
Color Gamut
147% sRGB
Color Space Switch
Support (sRGB/Adobe RGB/DCI-P3)
Contrast Rate
1000:1 (typ.)
Screen Resolution
1920 x 1080
Brightness
200 cd/㎡ (typ.)
Pressure Levels
16,384 (via firmware upgrading)
Tilt Recognition
±60°
Resolution
5080 LPI
Reading Height
10 mm
Dimensions
224 x 355 x 12 mm
Full-Laminated
Yes
Anti-Glare
Yes
Scroll Wheel
1
Shortcut Keys
8
Ports
USB-C*2 (the all-in-one USB-C port and the 3-in-1 USB-C port)
Compatibility
Windows 7 or later, Mac OS 10.10 or later, Android 9.0 or later (USB3.1 DP1.2), Chrome OS 88 or later, Harmony 2 or later, and Linux
Package Includes

Drawing Monitor

Battery-Free Stylus

Replacement Nibs x 10

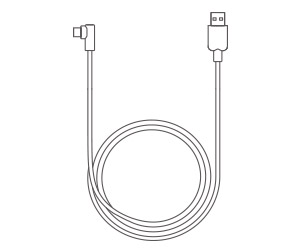

USB-A to C Cable

USB-C to C Cable

Nib Extractor

Warranty Card

Quick Guide

Linux OSVersionPackage FormatSupported Software
ArchArch Linux2019.12.01(64-bit).deb, .shGIMP, Krita
CentosCentos7.0(64-bit).rpm, .shGIMP
Centos8(64-bit).rpm, .shGIMP, Krita
Debiandebian-9.5.0-amd64-netinst(64-bit).deb, .shGIMP, Krita
elementary OSelementary OS 5.0(64-bit).deb, .shGIMP, Krita
ezgo Linuxezgo14(64-bit).deb, .shGIMP, Krita
FedoraFedora32(64-bit).rpm, .shGIMP, Krita
MageiaMageia-7.1(64-bit).rpm, .shGIMP, Krita
Manjaromanjaro-xfce-20.1.2-201019(64-bit).deb, .shGIMP
Mintlinuxmint-18.2-cinnamon-64bit.deb, .shGIMP, Krita
OpenSUSEopenSUSE-Tumbleweed(64-bit).rpm, .shGIMP, Krita
Pop!_OSpop-os_19.10(64-bit).deb, .shGIMP, Krita
Red HatRed Hat7(64-bit).rpm, .shGIMP
UbuntuUbuntu14.04(64-bit).deb, .shGIMP, Krita
Ubuntu16.04(64-bit).deb, .shGIMP, Krita
Ubuntu17.04(64-bit).deb, .shGIMP, Krita
Ubuntu18.04(64-bit).deb, .shGIMP, Krita
Ubuntu19.04(64-bit).deb, .shGIMP, Krita
Ubuntu20.04(64-bit).deb, .shGIMP, Krita
FunctionKrita 4.3.0Gimp 2.10.20Inkscape 0.92
Pen Pressure Sensitivity
Tilt
Mouse Function
Eraser Button
(Stylus:PH01, P06)
Switch between Pen
and Eraser Modes
*If you have any further queries, please do not hesitate to contact us at service@ugee.com.

Linux OS

Arch
Version
Arch Linux2019.12.01(64-bit)
Package Format
.deb, .sh
Supported Software
GIMP, Krita
Centos
Version
Centos7.0(64-bit)
Centos8(64-bit)
Package Format
.rpm, .sh
.rpm, .sh
Supported Software
GIMP
GIMP, Krita
Debian
Version
debian-9.5.0-amd64-netinst(64-bit)
Package Format
.deb, .sh
Supported Software
GIMP, Krita
elementary OS
Version
elementary OS 5.0(64-bit)
Package Format
.deb, .sh
Supported Software
GIMP, Krita
ezgo Linux
Version
ezgo14(64-bit)
Package Format
.deb, .sh
Supported Software
GIMP, Krita
Fedora
Version
Fedora32(64-bit)
Package Format
.rpm, .sh
Supported Software
GIMP, Krita
Mageia
Version
Mageia-7.1(64-bit)
Package Format
.rpm, .sh
Supported Software
GIMP, Krita
Manjaro
Version
manjaro-xfce-20.1.2-201019(64-bit)
Package Format
.deb, .sh
Supported Software
GIMP
Mint
Version
linuxmint-18.2-cinnamon-64bit
Package Format
.deb, .sh
Supported Software
GIMP, Krita
OpenSUSE
Version
openSUSE-Tumbleweed(64-bit)
Package Format
.rpm, .sh
Supported Software
GIMP, Krita
Pop!_OS
Version
pop-os_19.10(64-bit)
Package Format
.deb, .sh
Supported Software
GIMP, Krita
Red Hat
Version
Red Hat7(64-bit)
Package Format
.rpm, .sh
Supported Software
GIMP
Ubuntu
Version
Ubuntu14.04(64-bit)
Ubuntu16.04(64-bit)
Ubuntu17.04(64-bit)
Ubuntu18.04(64-bit)
Ubuntu19.04(64-bit)
Ubuntu20.04(64-bit)
Package Format
.deb, .sh
.deb, .sh
.deb, .sh
.deb, .sh
.deb, .sh
.deb, .sh
Supported Software
GIMP, Krita
GIMP, Krita
GIMP, Krita
GIMP, Krita
GIMP, Krita
GIMP, Krita

Function

Pen Pressure Sensitivity
Krita 4.3.0
Gimp 2.10.20
Inkscape 0.92
Tilt
Krita 4.3.0
Gimp 2.10.20
Inkscape 0.92
/
Mouse Function
Krita 4.3.0
Gimp 2.10.20
Inkscape 0.92
Eraser Button(Stylus:PH01, P06)
Krita 4.3.0
Gimp 2.10.20
Inkscape 0.92
Switch between Penand Eraser Modes
Krita 4.3.0
Gimp 2.10.20
Inkscape 0.92

*If you have any further queries, please do not hesitate to contact us at service@ugee.com.

Compatibility list of other systems
Mode Switch

SystemTurn off Touch functionTurn on Pen Priority modeTurn on both Pen and
Touch functions
WindowsSupportSupportSupport
MacSupportSupportNot supported
Android
(List of compatible Android devices)
SupportSupportNot supported
Touch Gesture

Single-fingerTwo-fingerMulti-finger
WindowsSupportSupportNot supported
MacSupportNot supportedSupport
AndroidSupportSupportNot supported
Compatibility list of other systems
Mode Switch
Turn off Touch functionWindows: support
Mac: support
Android
(List of compatible Android devices)
: support
Turn on Pen Priority modeWindows: support
Mac: support
Android
(List of compatible Android devices)
: support
Turn on both Pen and
Touch functions
Windows: support
Mac: not supported
Android
(List of compatible Android devices)
: not supported
Touch Gesture
Single-fingerWindows: support
Mac: support
Android: support
Two-fingerWindows: support
Mac: not supported
Android: support
Multi-fingerWindows: not supported
Mac: support
Android: not supported
List of compatible Android devices
HUAWEI Mate 10Samsung Galaxy Note8
HUAWEI Mate 10 ProSamsung Galaxy Note9
HUAWEI Mate 20Samsung Galaxy Note10
HUAWEI Mate 20 ProSamsung Galaxy Note10+ 5G
HUAWEI Mate 20 XSamsung Galaxy S8
HUAWEI Mate 30 ProSamsung Galaxy S8+
HUAWEI Mate 40Samsung Galaxy S9
HUAWEI Mate 40 ProSamsung Galaxy S9+
HUAWEI Mate 30E Pro 5GSamsung Galaxy S10
HUAWEI P30Samsung Galaxy S10+
HUAWEI P30 ProSamsung Galaxy S10e
HUAWEI P40Samsung Galaxy S20 Ultra 5G
HUAWEI P40 ProSamsung Galaxy S20 FE 5G
HUAWEI P40 Pro+Samsung Galaxy S20
Honor V20Samsung Galaxy S20+
Honor 30 Pro+Samsung Galaxy A90 5G
